Why Your Navien Circulation Pump Matters for Instant Hot Water
Navien circulation pump replacement is a critical maintenance task that restores instant hot water delivery to your home or business. When your circulation pump fails, you’ll experience long waits for hot water, inconsistent temperatures, and wasted water—exactly the problems your Navien system was designed to eliminate.
Quick Answer: What You Need to Know
- Signs you need replacement: Long wait times for hot water, strange noises (grinding or humming), visible leaks, or error codes on your display
- Correct part number: Most A-Series models use part 30000466A (compatible with NPE-A, NP-A, NR-A, CC-A, and CR-A series)
- Typical cost: $150-$300 for the OEM pump alone
- Installation requirement: Must be installed by a licensed technician to maintain warranty coverage
- Time to replace: 1-2 hours for an experienced technician
Your Navien tankless water heater’s circulation pump is the heart of its ComfortFlow® technology—the system that eliminates the frustrating “cold-water sandwich effect” and delivers hot water almost instantly to your faucets. When this pump stops working properly, your entire hot water system suffers.
The built-in recirculation pump in Navien NPE-A2 series heaters continuously circulates hot water through your home’s plumbing lines. This means no more running the tap for minutes waiting for hot water to arrive. It’s a brilliant system that saves water, energy, and time—but only when it’s working correctly.
Whether you’re hearing unusual grinding sounds from your heater, noticing water pooling beneath the unit, or simply not getting hot water as quickly as you used to, understanding when and how to replace your circulation pump can save you from cold showers and costly water waste.
Understanding Your Navien Circulation Pump’s Role
At VanDerBosch Plumbing Inc., we know that for our Chicagoland clients, a Navien tankless water heater is a cornerstone of home comfort. At the heart of its performance is the circulation pump.

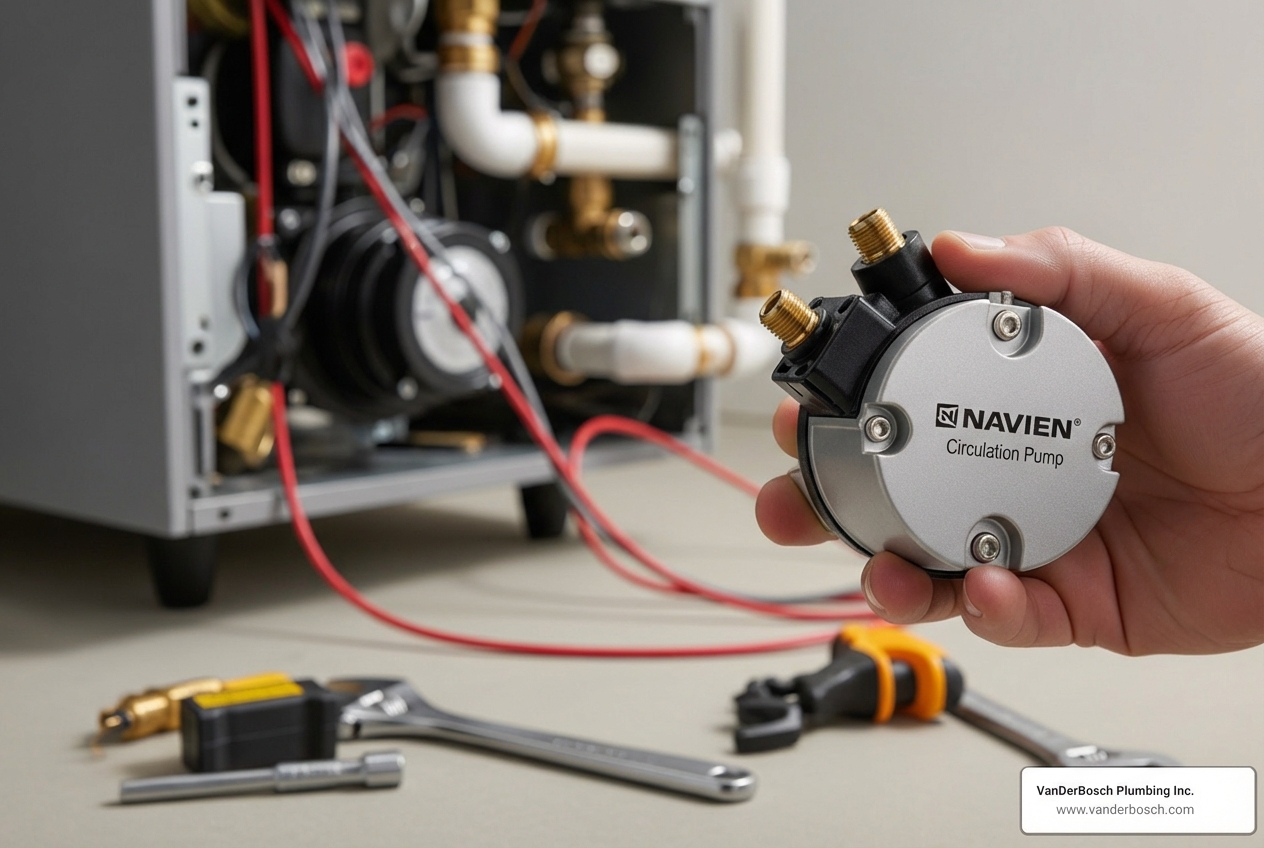

A Navien circulation pump is a small component that keeps hot water moving through your home’s plumbing. While tankless units are efficient, they heat water on demand, which can cause a delay as hot water travels to your faucet. The circulation pump eliminates this wait.
Navien’s ComfortFlow® technology, found in models like the NPE-A2 Series, integrates a buffer tank and recirculation pump into the unit. This system ensures hot water is always ready, preventing the “cold-water sandwich effect”—an unpleasant burst of cold water between hot water uses.
The built-in pump in NPE-A2 heaters recirculates water using an external line or existing lines with NaviCirc®, eliminating the need for external pumps. The NaviCirc device connects to hot and cold water lines, pre-heating them to shorten or eliminate the wait for hot water. This leads to significant water conservation and improved system efficiency.
The NaviCirc has a crossover shutoff temperature of 95°F (35°C) and operates at a flow rate of 0.53 – 1.06 GPM (2.0 – 4.0 LPM), precisely managing water movement. Your Navien circulation pump is the key to delivering instant, endless, and efficient hot water, making your daily routines smoother.
Is It Time for a Replacement? Troubleshooting and Telltale Signs
Nobody likes a cold shower, especially not when you’ve invested in a top-tier Navien tankless water heater! So, how do you know if your circulation pump is on the fritz and potentially heading for a Navien circulation pump replacement? Before jumping to conclusions, we always recommend a bit of troubleshooting. Sometimes, a simple adjustment or cleaning can resolve an issue. However, there are several clear signs that your Navien circulation pump needs replacement.
First, if you’re experiencing a long wait for hot water at your faucets, particularly those furthest from the water heater, it’s a strong indicator. Your Navien’s ComfortFlow® system is designed to provide near-instant hot water. If you’re back to waiting several minutes, the pump might not be doing its job. Similarly, inconsistent temperatures—where the water fluctuates between hot and lukewarm—could point to a circulation issue.
Pay close attention to any strange noises emanating from your water heater. A healthy circulation pump typically operates quietly. If you start hearing grinding sounds, loud humming, or a high-pitched whine, it suggests mechanical wear or an obstruction within the pump. While some small noises can occur normally due to the NaviCirc’s temperature cut-off function, persistent or unusual grinding is a red flag.
Visible leaks are another serious sign. If you notice water pooling beneath your Navien unit, it could be originating from the pump itself or its connections. Leaks can lead to significant water damage and compromise the electrical components of your water heater. If you’re wondering Why is my water heater leaking?, a faulty circulation pump is certainly one possibility to investigate.
Finally, your Navien tankless water heater is equipped with a sophisticated diagnostic system that displays error codes. If you see an error code related to the circulation pump or water flow, consult your owner’s manual. These codes are designed to pinpoint specific issues and can often confirm a pump malfunction.
Ignoring these warning signs can lead to several risks of a faulty pump. Beyond the inconvenience and wasted water, a failing pump can strain other components of your water heater, potentially leading to more extensive and costly repairs down the line. Sediment buildup, which can cause rumbling sounds in traditional water heaters, can also impact tankless systems and their pumps, reducing efficiency. For more general insights into when your water heater might need attention, you can check out our guide on Signs Your Water Heater May Need Repair or Replacement. Addressing pump issues promptly ensures the longevity and optimal performance of your entire Navien system.
The Complete Guide to Navien Circulation Pump Replacement
Once you’ve determined your Navien circulation pump is the culprit, the next step is replacement. This task requires precision, the right parts, and a healthy respect for safety.
Before starting, emphasize safety precautions. You’ll be dealing with water, electricity, and potentially gas, so caution is paramount. Always power down the unit and isolate it from water and gas supplies. The importance of using OEM parts cannot be overstated, as they ensure reliability and maintain your warranty.
The step-by-step process involves preparation, removal, installation, and testing. While we provide a detailed overview, this is a complex procedure.
Identifying and Sourcing the Correct Part
The most crucial step is ensuring you have the correct replacement part. Using the wrong pump can lead to improper function, damage, and may void your warranty. We strongly recommend genuine OEM vs. aftermarket parts. OEM (Original Equipment Manufacturer) parts are identical to the original, guaranteeing fit and performance, while aftermarket quality can vary widely.
The most common part number for many A-Series models is 30000466A. This genuine OEM part is equivalent to previous numbers like 30000435A, 30000466B, and 30000445A.
The Navien 30000466A Circulation Pump is compatible with multiple Navien models, including:
- CC-180A-LP, CC-180A-NG
- CC-210A-LP, CC-210A-NG
- CC-240A-LP, CC-240A-NG
- CR-180A-LP, CR-180A-NG
- CR-210A-LP, CR-210A-NG
- CR-240A-LP, CR-240A-NG
- NP-180A-LP, NP-180A-NG
- NP-210A-LP, NP-210A-NG
- NP-240A-LP, NP-240A-NG
- NR-180A-LP, NR-180A-NG
- NR-210A-LP, NR-210A-NG
- NR-240A-LP, and NR-240A-NG.
Always double-check your model’s required part number. For where to buy, we recommend authorized Navien distributors or the official Navien Parts & Accessories site. The typical cost for an OEM pump ranges from $150-$300.
| Feature | OEM Navien Circulation Pump | Aftermarket Circulation Pump |
|---|---|---|
| Source | Manufactured by or for Navien | Produced by third-party companies |
| Fit & Function | Guaranteed perfect fit and optimal performance | May vary; fit or function might not be exact |
| Quality | High-quality materials and strict manufacturing standards | Quality can be inconsistent; cheaper materials possible |
| Warranty | Maintains Navien unit warranty; often has its own warranty | Can void Navien unit warranty; aftermarket warranty varies |
| Reliability | Designed for maximum lifespan and efficiency | May have shorter lifespan or unexpected failures |
| Cost | Generally higher (e.g., $150-$300) | Often lower |
Tools and Materials Needed
Gather these tools and materials before you begin:
- New Navien Circulation Pump: Correct OEM part for your model.
- Replacement O-rings/Gaskets: Often included with a new OEM pump.
- Adjustable Wrench
- Screwdrivers (Phillips and Flathead)
- Bucket and Towels
- Pliers
- Thread Sealant Tape (Teflon Tape) or Pipe Dope
- Voltage Tester
- Safety Glasses and Gloves
Step-by-Step Replacement Instructions
If at any point you feel unsure, it’s best to call a professional. We’re here to help in Chicagoland!
Safety Shutdown:
- Turn off Power: Switch off the circuit breaker for the water heater. Confirm with a voltage tester that no power is reaching the unit.
- Turn off Gas: For gas units, turn off the gas shut-off valve on the line leading to the heater.
- Turn off Water: Turn off the hot and cold water shut-off valves leading to the unit.
Draining the Unit:
- Open a hot water faucet to relieve system pressure.
- Attach a hose to the unit’s drain valve and direct it to a drain or bucket. Open the valve and let the unit drain completely.
Removing the Cover: Unscrew and remove the outer casing of your Navien water heater to expose the circulation pump.
Disconnecting the Old Pump:
- Take photos of the wiring and pipe connections for reference during reassembly.
- Disconnect the electrical wiring from the pump.
- Using a wrench, loosen the unions securing the old pump to the water lines. Use a bucket and towels to catch residual water.
- Once loose, carefully remove the old pump.
Installing the New Pump:
- Ensure the new pump has fresh O-rings or gaskets.
- Position the new pump in the same orientation as the old one.
- Hand-tighten the pipe connections first to ensure proper alignment, then use your wrench to tighten securely without overtightening.
Reconnecting and Testing:
- Reattach the electrical wiring to the new pump, referring to your photos.
- Close the drain valve. Slowly open the cold and then hot water valves to refill the unit.
- Turn the gas supply back on (if applicable) and restore power at the circuit breaker.
- Observe the new pump and all connections carefully for any leaks.
- Run a hot water faucet to purge air from the system and test hot water delivery.
- For a visual guide, some find videos helpful, like this one on Replacing a recirculating pump in a Navien 240A … – YouTube.
This process can be intricate. A small mistake can lead to significant problems, which brings us to our next point.
DIY vs. Professional Installation: Making the Right Choice
When facing a Navien circulation pump replacement, homeowners often wonder: “Can I do this myself?” The answer depends on your skill, comfort with plumbing and electrical work, and understanding of the risks.
This is not a simple task. It involves water lines, electrical components, and potentially gas lines, requiring a good skill level. The safety risks are significant, from scalding water to electrical shock or gas leaks. A mistake can lead to injury or property damage.
Crucially, there are warranty implications. Navien requires installation by a licensed technician for warranty coverage. A DIY installation could void your warranty, leaving you responsible for future repair costs.
The Case for DIY Navien Circulation Pump Replacement
For experienced DIYers with a strong background in plumbing and electrical work, this project might seem appealing for its cost savings on labor and the sense of accomplishment. If you are confident, have the right tools, and follow a guide carefully, it can be a rewarding project. However, be realistic about the complexity.
Why Professional Navien Circulation Pump Replacement is Often Better
For most homeowners, professional Navien circulation pump replacement is the smarter choice. Here’s why:
- Warranty Requirements: A licensed technician must perform the replacement to maintain your Navien warranty, protecting your investment.
- Experience and Safety: Our licensed, background-checked technicians at VanDerBosch Plumbing Inc. understand Navien systems. We handle water, gas, and electrical connections safely, minimizing risks to your home and family.
- Code Compliance: Professionals ensure the installation meets all local building and fire codes in Chicagoland, which is also critical for Commercial Plumbing jobs.
- Peace of Mind: Knowing the job is done right by experts is invaluable. You can trust your hot water system will function flawlessly.
- Guaranteed Workmanship: We back our work with a 100% satisfaction guarantee. This level of accountability is something DIY can’t offer.
While the appeal of DIY is understandable, the complexity, safety risks, and warranty rules make professional installation the most prudent choice.
Frequently Asked Questions about Navien Pumps
We get a lot of questions about Navien tankless water heaters and their components, especially the circulation pump. Here are some of the most common ones we hear from our clients across Illinois.
How long does a Navien circulation pump typically last?
The average lifespan of a Navien circulation pump, like any mechanical component, can vary, but generally, you can expect it to last for several years, often aligning with the warranty period for parts, which is typically 3 years from the date of original installation for Navien components. However, this is not a hard and fast rule.
Several factors affecting longevity include:
- Water Quality: Hard water or water with high mineral content can lead to scale buildup, which can prematurely wear down pump components. Regular flushing and maintenance can mitigate this.
- Usage Patterns: A pump that runs almost continuously in a high-demand household might have a shorter lifespan than one in a home with more moderate hot water usage.
- Maintenance: Consistent and proper maintenance of the entire Navien unit, including periodic flushing and checking for sediment, can significantly extend the life of the pump. Neglecting maintenance can allow debris to enter and damage the pump.
- Installation Quality: A correctly installed pump with proper water flow and electrical connections will naturally last longer than one that was improperly installed.
While the entire water heater might last 9 years or more, smaller components like pumps can require replacement sooner due to constant operation.
Can I use an aftermarket circulation pump for my Navien heater?
While you technically can purchase an aftermarket circulation pump, we strongly advise against it for your Navien heater. There are significant risks of aftermarket parts that can outweigh any initial cost savings:
- Voided Warranty: This is a critical point. Navien’s warranty often specifies that only genuine OEM parts can be used for repairs, and installation must be performed by a licensed technician. Using an aftermarket pump can immediately void your Navien unit’s warranty, leaving you responsible for any future repair costs, even if they are unrelated to the pump itself.
- Improper Fit: Aftermarket parts are rarely an exact match. Even slight differences in dimensions or connection points can lead to leaks, strain on other components, or improper sealing.
- Reduced Performance: Aftermarket pumps may not meet Navien’s stringent specifications for flow rate, pressure, or energy efficiency. This can result in less effective recirculation, leading to longer wait times for hot water and reduced overall efficiency, negating the very benefits of your Navien system.
- Lower Quality: Aftermarket parts are often manufactured with cheaper materials and less rigorous quality control to keep costs down. This can lead to premature failure and the need for another replacement sooner than expected.
The importance of genuine parts cannot be stressed enough. OEM Navien circulation pumps are designed, tested, and guaranteed to work seamlessly with your unit. Investing in a genuine part ensures reliability, maintains your warranty, and safeguards the performance of your entire hot water system.
What does a Navien error code for the circulation pump mean?
Navien tankless water heaters are equipped with advanced diagnostic systems that display specific error codes when an issue arises. If you see an error code that points to the circulation pump, it’s your unit’s way of telling you something is amiss with this vital component.
Common issues indicated by such error codes include:
- Pump Failure: The pump motor may have seized, burned out, or become inoperable.
- Blockage: Debris, sediment, or scale buildup within the pump or the recirculation lines can impede the pump’s operation.
- Electrical Malfunction: Problems with the pump’s power supply or control wiring can prevent it from turning on or running correctly.
- Sensor Issues: A faulty sensor related to the pump’s operation might trigger an error code, even if the pump itself is physically working.
When you encounter an error code:
- Consult Your Manual: Your Navien owner’s manual is your first resource. It will list the specific error codes and their corresponding troubleshooting steps.
- Basic Troubleshooting Steps: Some manuals might suggest basic checks like ensuring the power supply is stable or resetting the unit.
- When to Call a Pro: If the error code persists after basic troubleshooting, or if you’re unsure about the steps, it’s time to call a professional. Our licensed technicians at VanDerBosch Plumbing Inc. have the specialized diagnostic tools and expertise to accurately interpret Navien error codes, pinpoint the exact cause of the problem, and perform the necessary repairs or Navien circulation pump replacement. Attempting to fix complex error code issues without proper training can lead to further damage or safety hazards.
Conclusion: Keep Your Hot Water Flowing Smoothly
The circulation pump in your Navien tankless water heater is more than just a part; it’s the component that ensures the luxurious comfort and efficiency you expect from your system. By actively circulating hot water, it eliminates frustrating delays, prevents the cold-water sandwich effect, and helps conserve water—all contributing to a more enjoyable and eco-friendly home.
Understanding its function, recognizing the signs of failure, and knowing the proper steps for a Navien circulation pump replacement are key to maintaining your hot water system. While the allure of DIY vs. professional installation might tempt some, the complexities involved, coupled with critical safety concerns and warranty implications, often make professional service the wisest choice.
